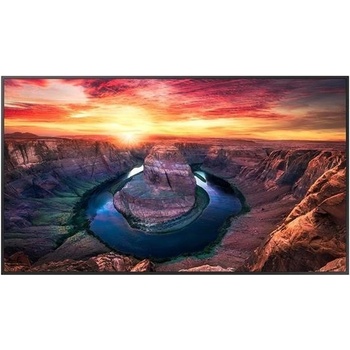

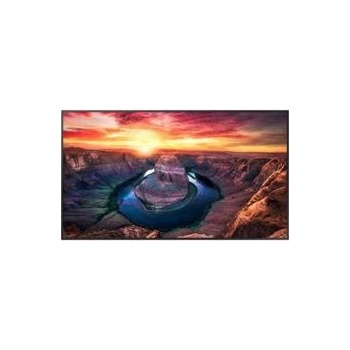

Samsung QM55C

Samsung QM55C 55" 3840x2160 500cd, HDMI DP Wifi BT prevadzka 24/7

Diagonal Size Class 55

Measured 54.6

Resolution 3840x2160(16:9)

Brightness(Typ.) 500 nit

Orientation Landscape / Portrait

Haze 25%

Contrast Ratio (Typ.) 4000:1

Type VA

Active Display Area 1209.6(H) x 680.4(V)

Pixel Pitch (mm) 0.315 x 0.315

Color Gamut NTSC 72%

Operation Hour 24/7

INPUT VIDEO DP 1.2 (1), HDMI 2.0 (3)

AUDIO N/A

USB USB 2.0 x 2

Tuner N/A

OUTPUT VIDEO N/A

AUDIO Stereo mini Jack

USB N/A

WiFi / BT O / O

EXTERNAL CONTROL RS232C(in/out), RJ45

Speaker 10W 2ch

Dimension (mm) Set 1237.9 x 708.8 x 28.5

Package 1403 x 835 x 148

Weight (kg) Set 15,7

Package 19,9

VESA Mount 200 X 200

VESA Mount Screw (Min~Max) M8, 12~14mm

Bezel Width (mm) 11.5(Even)

Key "UHD Signage with

Built-in MagicInfo S10, SSSP 10.0"

Internal Player Operating System Tizen 7.0

Processor CA73 1.6GHz Quad-Core

Storage (FDM) 16 GB(10 GB available)

Special H/W "2nd Gen. B2B Design

Center IR

Temperature Sensor

Ambient Sensor

Auto Level

Wi-Fi(2.4/5.0GHz dual) & BT"

S/W "Signage New Home

Workspace (Microsoft371/VMWare/RDP)

Custom Home

Auto Source Switching & Recovery

Dicom Simulation Mode

Director Mode

SmartView+

Upgradable Web-Engine

Tizen Enterprise Platform

Video Conference Solution

Smart Calibration"

Safety 60950-1 / 62368-1

EMC Class B

Environment ENERGY STAR 8.0, EPEAT

IP Rating IP5x

Security "802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP"

Power Supply AC 100 - 240 V, 50/60 Hz

Power Consumption Max[W/h] 154

Typical[W/h] 102

Sleep mode less than 0.5W

Temperature 0?~ 40?

Relative Humidity 10~80%

Included "Quick Setup Guide,

Warranty Card,

Power Cord

RS232C(IN) Gender

Remote Controller & Batteries"

Optional Stand STN-L4355C

Mount WMN-B50SC

Specialty
